| MOQ: | 1 단위 |
| 가격: | negotiable |
| standard packaging: | 해상 운송을 위한 나무 상자 포장 |
| Delivery period: | 5~8일 |
| 결제 방법: | L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램 |
| Supply Capacity: | 달 당 1000 유닛 |

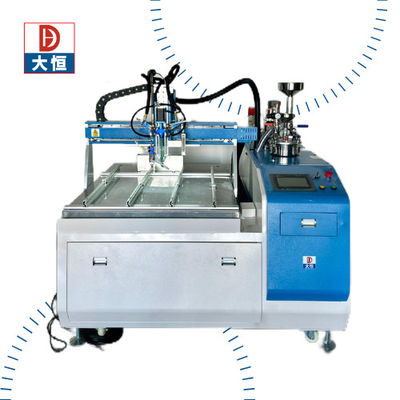

Potting and encapsulation involve embedding products in liquid resin to protect them from environmental damage, including corrosion and vibrations. We provide automated and semi-automated fluid dispensing machines for potting, including 2-component and epoxy dispensing systems, as well as related vacuum systems. Our equipment includes high-precision dispensing valves, automated glue dispensers, and glue mixing machines, designed for electronics production.
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.
Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.
| Model & Type | PGB-810 |
| Certificate | CE, SGS |
| Dimension | 1550x1350x1700mm |
| N.W. | 600kg |
| XYZ Working Area | 800x700x100mm |
| Flow Speed | 0-150g/5s, or customized |
| Moving Speed | 500mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/-0.03m |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^ |
화면
화면
화면
화면
화면
|
|
